Limit Switch

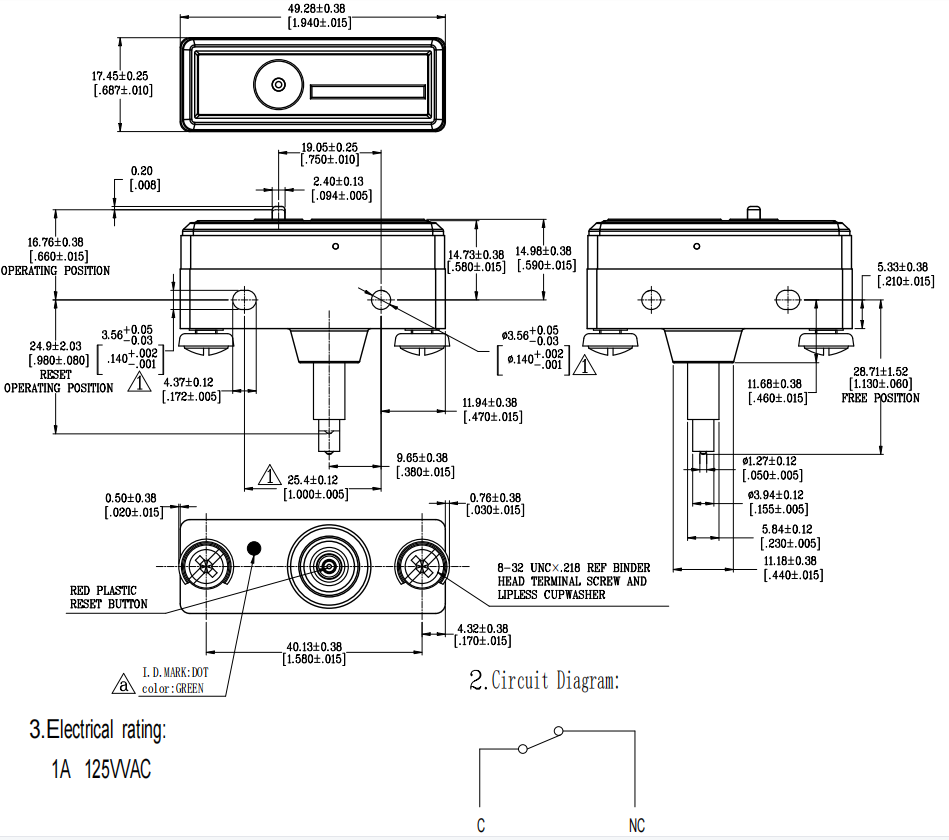

Notes (NOTES):
1.开关壳体需刻印开关目录编号(MICRO SWITCHES CATALOG NUMBERS MUST BE PRINTED ON SWITCHES)
2.安装孔位插片或螺丝最大外径3.531mm,中心为25. 4mm(MOUNTING HOLES WILL ACCEPT PINS OR SCREWS OF .139 MAX. DIA. ON 1.000
CENTERS)
3.按钮释放后，复位键持续按压时，开关功能不得自动转换(SWITCH WILL NOT RECYCLE OR ACT AS A MOMENTARY ACTION SWITCH IF PIN PLUNGER
IS RELEASED WHEN RESET PLUNGER IS
CONTINUALLY DEPRESSED )
4.按钮从动作位置释放0.2后，启动复位键,开关能复位(SWITCH MUST BE CAPABLE OF BEING RESET WHEN PIN PLUNGER IS RELEASED .008
BASIC FROM OPERATING POSITION)
5.对于毫伏应用，测试或校准时特性不超过200毫安的电流(FOR MILLIVOLT APPLICATION ONLY DO NOT SUBJECT TO MORE THAN 200 MILLIAMPS OF
CURRENT WHEN TESTING OR CALIBRATING CHARACTERISTICS)
